When you call Belzona Technology Northwest about a repair problem, we're going to ask questions: What's the substrate? What caused the damage? What are the service conditions? And many, many more... Those questions point us toward the right Belzona Series—and from there, the right product. This guide walks you through that same logic. It's not a substitute for application-specific recommendations (every repair has variables that matter), but it will help you understand the product families and speak the same language when we're working through your options together.
This guide is designed to help break down Belzona's complete product lineup for Pacific Northwest maintenance managers dealing with the region's unique mix of marine environments, chemical and processing plant operations, refineries, and municipal infrastructure.
The Logic Behind the Numbers

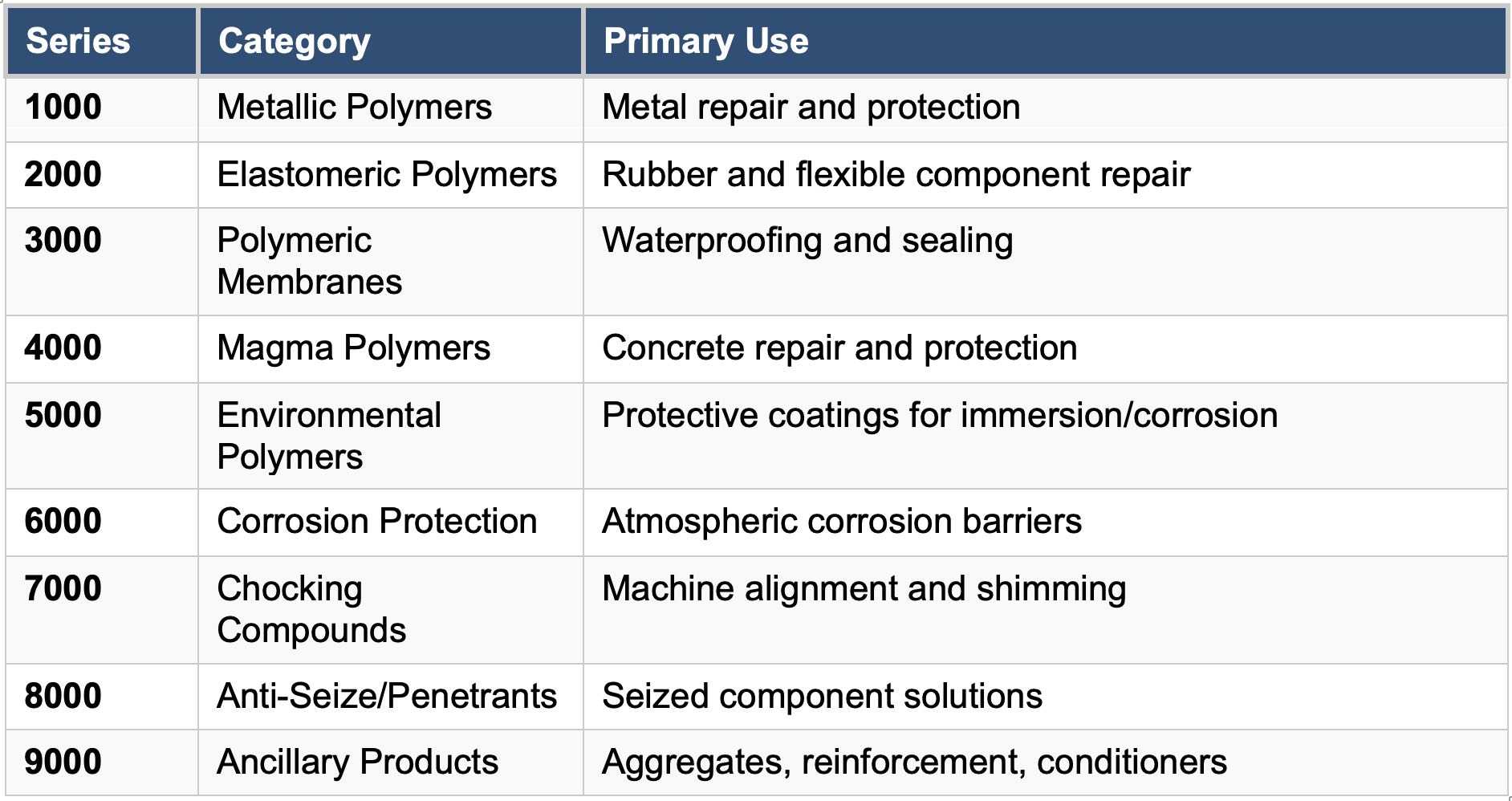

Belzona organizes its products into nine series, each designed around a specific material type or application category. Understanding this structure helps you navigate to the right solution faster:
 |
1000 Series: The Metal Repair Workhorses
The 1000 Series is Belzona's largest and most versatile product line—26 products covering everything from emergency metal rebuilding to high-temperature erosion protection. For most industrial maintenance operations, this is where you'll spend the majority of your time.
Rebuilding Compounds (1100 Sub-Series)
When equipment has lost metal to corrosion, erosion, or mechanical damage, these paste-grade composites restore original dimensions without welding.
Belzona 1111 (Super Metal) is the flagship—a general-purpose epoxy composite that handles most metal rebuilding applications. Pump housings, valve bodies, bearing seats, shaft journals—if it's metal and it's worn, 1111 is usually the starting point.
Belzona 1121 (Super XL-Metal) offers extended working life for larger repairs or hot conditions where standard 1111 would cure too quickly.
Belzona 1212 is the surface-tolerant option—formulated to bond on wet, oily, or contaminated surfaces where ideal preparation isn't possible. Essential for emergency repairs in wastewater, marine, and other challenging environments.
Erosion/Corrosion Coatings (1300 Sub-Series)
These ceramic-filled coatings protect metal surfaces from the combined attack of flowing media and corrosive environments.
Belzona 1341 (Supermetalglide) stands out for pump applications—its hydrophobic surface actually improves hydraulic efficiency while protecting against cavitation and erosion. Documented efficiency gains of 5-7% on new equipment and up to 20% on refurbished pumps.
Abrasion-Resistant Linings (1800 Sub-Series)
For severe sliding abrasion—wood chip handling, slurry systems, material transfer—the ceramic carbide products provide exceptional wear life.
Belzona 1811 (Ceramic Carbide) is the go-to for screw conveyors, chutes, and hoppers in pulp and paper operations throughout Washington and Oregon.
Pro tip
The second digit in 1000 Series products often indicates the application type: 1100s for rebuilding, 1200s for surface-tolerant/emergency, 1300s for erosion-corrosion coatings, 1500s for high temperature, 1800s for abrasion resistance.
2000 Series: Elastomeric Solutions
When rubber components fail, traditional vulcanization requires specialized equipment, significant downtime, and often isn't practical for field repairs. The 2000 Series provides cold-cure alternatives that bond directly to damaged rubber.
Belzona 2111 (D&A Hi-Build Elastomer) handles most rubber rebuilding—conveyor belt repairs, pump liners, marine fenders. It's the elastomeric equivalent of 1111 for metal.
Belzona 2311 (SR Elastomer) is the rapid-cure emergency option. Full mechanical properties in 40 minutes at 86°F means conveyor belts can return to service the same shift.
PNW Applications: Mining operations, lumber mills, and port facilities throughout the region use these products for conveyor maintenance. The cold-cure advantage is particularly valuable in Pacific Northwest weather where vulcanization equipment setup becomes complicated.
3000 Series: Membranes and Sealing
The 3000 Series addresses waterproofing and weatherproofing applications—roofs, tank bases, and structures requiring flexible, breathable protection.
Belzona 3111 (Flexible Membrane) is the tank base sealing solution. Its microporous structure—waterproof but vapor-permeable—solves the trapped moisture problem that defeats conventional caulking. Case studies show 13+ years of service life versus 2-5 years for traditional sealants.
Belzona 3412 handles flange encapsulation—protecting bolted connections from corrosion in outdoor and marine environments.
4000 Series: Concrete Repair and Protection
Concrete deterioration affects containment areas, flooring, foundations, and structural elements throughout industrial facilities. The 4000 Series provides repair mortars and protective coatings for these substrates.
Belzona 4111 (Magma-Quartz) is the primary concrete rebuilding material—a three-component system offering high compressive strength, chemical resistance, and rapid cure. Containment areas, loading docks, and equipment foundations are typical applications.
Belzona 4131 (Magma-Screed) resurfaces larger floor areas where 4111 would be impractical.
Belzona 4521 fills expansion joints—critical for maintaining containment integrity in secondary containment areas at refineries and chemical facilities.
Chemical Resistance Options: For concrete exposed to acids or aggressive chemicals, products like Belzona 4311 (Magma CR1) and 4341 provide barrier protection that standard concrete coatings can't match.
5000 Series: Protective Coatings
The 5000 Series covers protective coatings for metal and concrete surfaces—everything from atmospheric corrosion protection to full immersion service and corrosion under insulation (CUI).
Immersion Service
Belzona 5811 (Immersion Grade) protects equipment operating under continuous seawater immersion—ballast tanks, stern tubes, sea chests. Its resistance to cathodic disbondment makes it superior to generic marine coatings.
CUI Protection
Belzona 5871 addresses corrosion under insulation—a single-component coating that can be applied directly to hot surfaces with minimal preparation. For refineries and processing facilities dealing with insulated piping and equipment, this eliminates the heat-affected corrosion that develops invisibly under insulation.
Chemical/Abrasion Protection
Belzona 5231 (SG Laminate) combines chemical resistance with slip reduction for industrial flooring applications.
Supporting Series: 6000-9000
6000 Series contains Belzona 6111, a barrier coating for atmospheric corrosion protection of structural steel—bridges, platforms, supports.
7000 Series provides chocking and shimming compounds for precision machine alignment. Belzona 7111 is particularly relevant for marine main engine installations and heavy industrial machinery throughout the region.
8000 Series includes anti-seize compounds and penetrating fluids—Belzona 8211 prevents seizure of bolted connections, while 8311 loosens frozen components.
9000 Series encompasses ancillary products: surface conditioners, reinforcement sheets, aggregates, and bridging tapes that support applications across all other series.
Choosing the Right Product: A Decision Framework
When facing a repair situation, work through these questions:
1. What's the substrate? Metal → 1000 Series | Rubber/elastomer → 2000 Series | Concrete → 4000 Series | Multiple materials or sealing → 3000 or 5000 Series
2. What's the damage mechanism? Erosion/abrasion → 1300 or 1800 subseries | Corrosion → 5000 Series coatings | Impact/wear → Material-appropriate rebuilding compound | Chemical attack → Check chemical resistance data
3. What are the service conditions? Immersion → 5800 subseries | High temperature → 1500 subseries or HT variants | Emergency/poor conditions → Surface-tolerant options (1212, 5821)
4. What's the timeline? Emergency same-day → Fast-cure variants (1221, 2311) | Planned maintenance → Standard products with full cure time
warning:
Product selection matters. Using a general-purpose material in severe service conditions—or vice versa—compromises repair longevity. Always consult with your distributor before committing to an application.
Pacific Northwest Industry Applications
Marine/Fishing: 1111 for stern tube rebuilding, 5811 for immersion protection, 1121 for shaft restoration, 7111 for engine chocking
Pulp & Paper: 1811 for conveyor protection, 1341 for pump efficiency, 2111 for rubber roller repair, 4111 for concrete containment
Refineries/Chemical: 5871 for CUI protection, 4311 for acid-resistant containment, 3111 for tank base sealing, 1212 for emergency repairs
Water/Wastewater: 1212 for surface-tolerant pump repairs, 1341 for impeller protection, 4111 for wet well rehabilitation, 5811 for immersion protection
Getting the Right Solution
The product lineup can seem overwhelming, but most facilities rely on a core set of products that address their specific challenges, and then keep them in stock, onsite. Belzona Technology Northwest helps PNW operations identify those products and develop maintenance strategies that maximize equipment life while minimizing inventory complexity.
Whether you're building out your first Belzona toolkit or optimizing an existing program, we can help match products to your actual maintenance needs. Give us a call, and we'll help guide you to the right solution.
