Valve, Pipe and Fitting Repair
Repair corroded valves, leaking flanges, and damaged piping without welding or hot work. Cold-applied solutions for in-place repairs that minimize downtime.
Piping System Corrosion
Valves, pipes, and fittings are subject to corrosion from both internal flow and external environmental exposure. Flanged connections present particular challenges — the complex geometry creates crevices where corrosion accelerates, and dissimilar metals at bolted joints promote galvanic corrosion.
Traditional repairs require cutting out damaged sections, welding in new material, and recoating. This means hot work permits, fire watch, confined space procedures, and extended downtime. In facilities handling flammable materials, hot work may not be permitted at all.
Belzona cold-applied systems rebuild corroded surfaces, seal leaks, reinforce weakened pipe walls, and protect flanges — all without welding. Repairs can often be made with systems partially in service, dramatically reducing downtime and eliminating hot work risk.
FLANGE PROTECTION

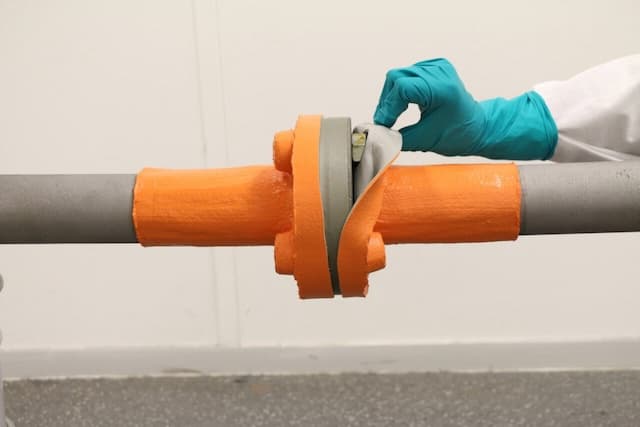

Belzona 3412 Encapsulating Membrane
Complete flange protection system using Belzona 8411 primer, 3412 membrane, and 9311 reinforcement. The system fully encapsulates flanges, fastenings, and associated pipework to exclude moisture and prevent corrosion.
Unlike rigid coatings or mechanical covers, the 3412 system is peelable — cut around the circumference, peel back for inspection, then reseal in place by brush-applying fresh material. No need to replace the entire system after maintenance. Salt spray tested for 1000+ hours with no corrosion.
Belzona 3412 Advantages
- Peelable — cut, inspect, fold back, reseal in place
- No hot work — bonds to manually prepared surfaces
- Brush, roller, trowel, or spray applied
- Complete encapsulation excludes all moisture
- Simple reinstatement — no full replacement needed
Why Standard Flange Protection Fails
- Paint systems thin on edges, can seize fastenings
- Mechanical covers require exact sizes in stock
- Tapes cannot be resealed after cutting for inspection
- Hot-melt requires hot work and specialist equipment
- VCI bags trap moisture inside and degrade over time
Valve, Pipe and Fitting Products
Products for rebuilding corroded surfaces, reinforcing weakened walls, and protecting against future corrosion.
Super Metal
Multi-purpose repair composite for rebuilding corroded valve bodies, pipe walls, and fitting surfaces.
Service temp: -40°C to 200°C
Application: Trowel, hand-applied
Super XL-Metal
Extended working life version of 1111 for larger repairs or hot environments where more application time is needed.
Working life: 2-3x longer than 1111
Application: Trowel, hand-applied
SuperWrap II
ISO 24817 and ASME PCC-2 compliant composite wrap system for reinforcing corroded or damaged pipe walls.
Certified: ISO 24817 / ASME PCC-2
Application: Wrapped layers
Encapsulating Membrane
Peelable flange protection system. Complete encapsulation with easy access for inspection and maintenance.
System: 8411 primer + 3412 + 9311
Application: Brush, roller, spray
Common Applications
Valve Body Rebuilding
Rebuild corroded or eroded valve bodies and restore sealing surfaces
Flange Face Repair
Rebuild damaged or corroded flange faces to restore proper sealing
Pipe Wall Reinforcement
Reinforce corroded pipe walls with SuperWrap II composite system
Elbow Erosion Repair
Rebuild eroded elbows and bends where flow accelerates wear
Flange Protection
Encapsulate flanges and fastenings with peelable 3412 system
Leak Sealing
Seal pinhole leaks and small cracks without shutdown
Case Study
Slurry Transfer Pipe Rebuild — Pacific Northwest

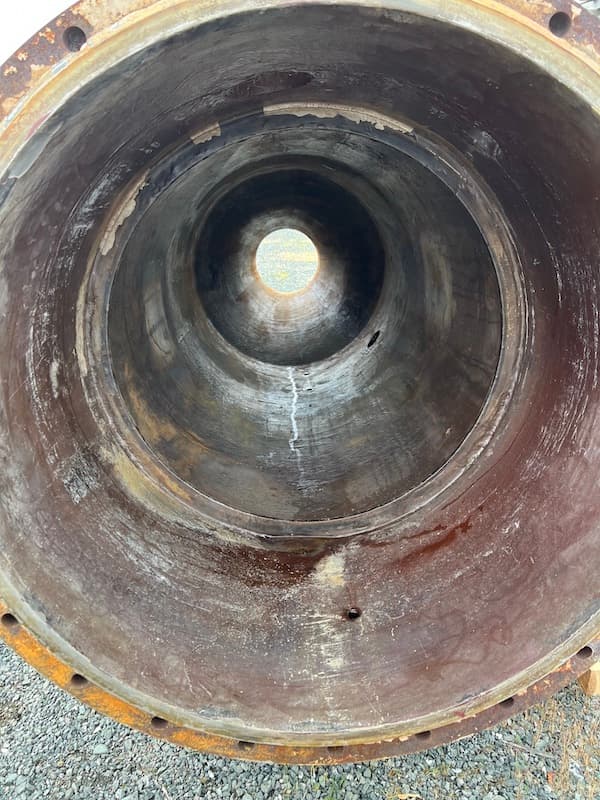

A slurry transfer pipe handling abrasive material had suffered severe internal pitting and erosion, compromising wall integrity and threatening an unplanned shutdown. The pipe needed a repair that could withstand the constant abrasion and erosive forces of the slurry while fitting within a tight maintenance window.

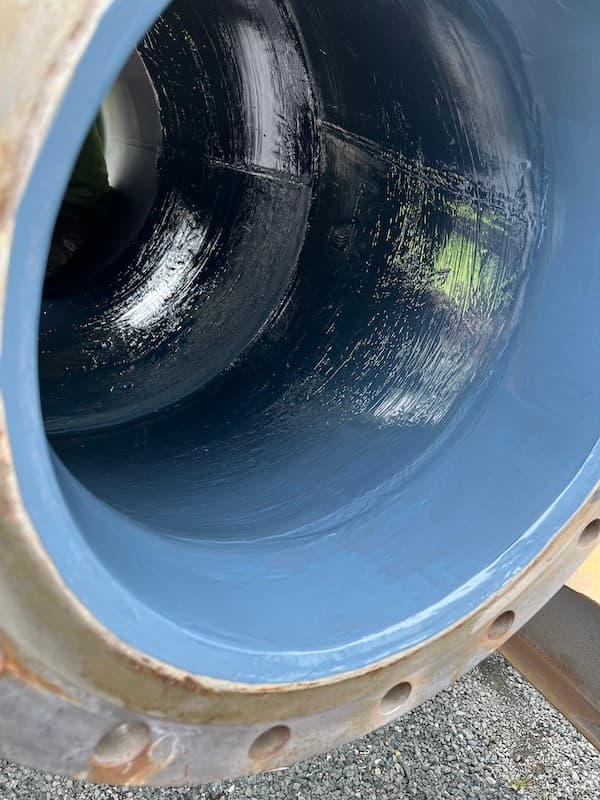

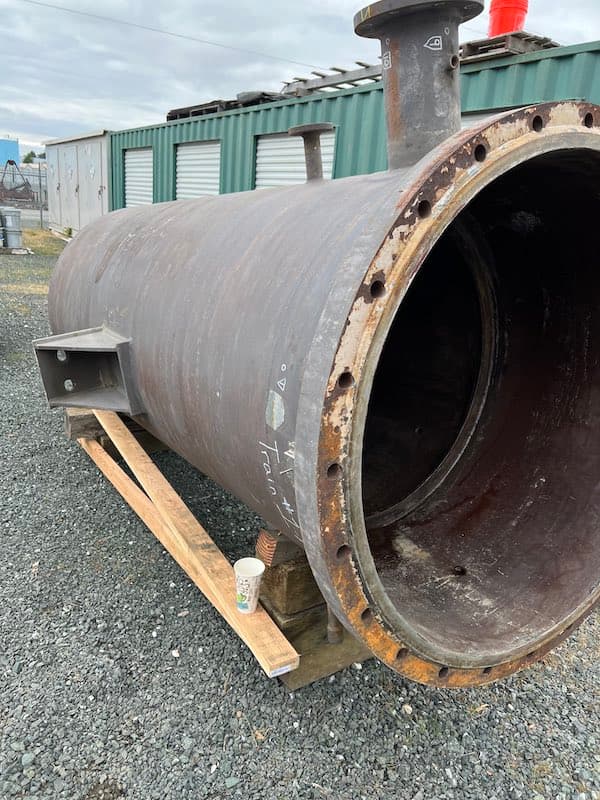

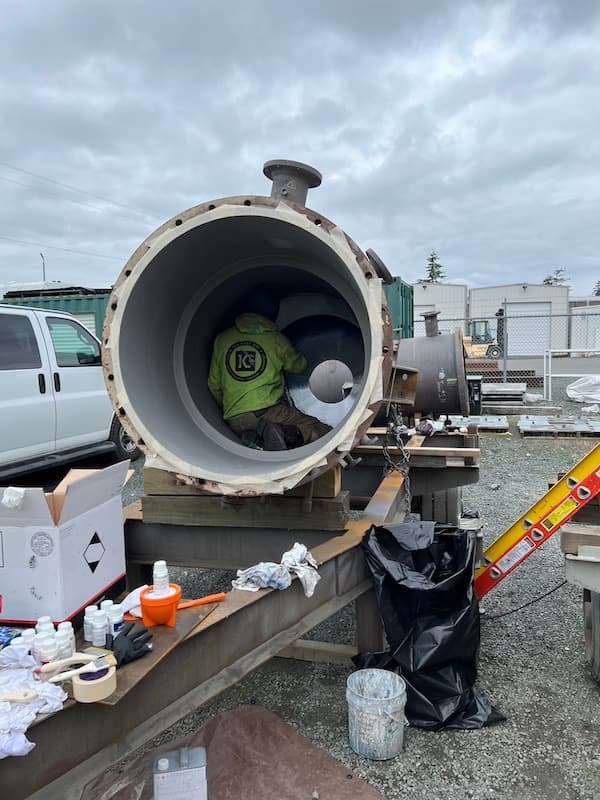

Belzona Technology Northwest President Travis Korda made the product recommendation and conducted an on-site visit to confirm proper installation. The eroded pipe internals were rebuilt using Belzona 1121 (Super XL-Metal), selected for its extended working life on larger surface areas. Two coats of Belzona 1321 (Ceramic S-Metal) were then applied to provide long-term abrasion and erosion resistance against the slurry. The pipe was prepared, rebuilt, and finished in a 3-day window, allowing it to be reinstalled and returned to service ahead of schedule. A properly executed repair like this can extend the useful life of the asset by decades — far outlasting the original unprotected surface.
Frequently Asked Questions
Can you repair a valve without removing it from the line?
In many cases, yes. External repairs to valve bodies and rebuilding of sealing surfaces can often be done in place. The valve needs to be isolated but not necessarily removed from the piping system.
How do you repair a corroded flange face?
Belzona 1111 or 1121 can rebuild corroded flange faces to restore a proper sealing surface. The repair is machined or formed to the correct profile and provides a durable, corrosion-resistant sealing face.
What is the advantage of SuperWrap II over welded repairs?
SuperWrap II is cold-applied — no hot work, no fire watch, no confined space welding. It meets ISO 24817 and ASME PCC-2 standards and can restore design pressure ratings without removing pipe from service.
How long does the 3412 flange protection last?
The 3412 system provides long-term protection and has been salt spray tested for over 1000 hours with no corrosion. Real-world performance depends on environmental conditions, but the system is designed for years of service with easy maintenance access.
What causes crevice corrosion in flanged connections?
Crevice corrosion occurs when corrosive substances concentrate in the gap between flange faces and under gaskets. The confined space accelerates corrosion rates, especially in the presence of chlorides, H2S, or other aggressive chemicals. Complete encapsulation with 3412 prevents this by excluding moisture entirely.
How often should flanges be inspected for corrosion?
Industry standards recommend visual inspection during scheduled maintenance, but the only way to fully inspect flange faces is to disassemble the joint — costly and time-consuming. Protected flanges with systems like 3412 can reduce inspection frequency while maintaining confidence in joint integrity.
Can corroded flange faces be repaired without replacing the flange?
Yes. Belzona epoxy composites can rebuild corroded flange faces to restore a proper sealing surface. The repair material is applied and formed using the mating flange or a prefabricated former, then cures to create a durable, corrosion-resistant face that seals properly with standard gaskets.
What is the difference between pitting and crevice corrosion?
Pitting corrosion affects the visible flange face and creates small cavities or holes in the surface. Crevice corrosion occurs in hidden areas between mating surfaces and under gaskets, making it harder to detect and often more damaging. Both compromise the sealing surface and can cause leaks.
Valve, Pipe and Flange Repair Without Welding
Describe your piping system problem — corroded valves, leaking flanges, weakened pipe walls — and we will recommend a cold-applied solution. Product supply and technical support throughout Washington, Oregon, Alaska, and Northern Idaho.
