Floors | Containment | Sumps | Loading Docks | Processing Areas
Concrete Repair
Permanent repairs that outlast cementitious patch materials. Belzona epoxy systems bond to concrete and resist the conditions that caused the original damage.
Why Concrete Repairs Fail
Most concrete repairs use cementitious bagged goods — portland cement-based mortars that are inexpensive and easy to apply. These repairs typically fail within one to three years due to the same conditions that damaged the original concrete.
The failure modes are predictable: bond line failure where the patch separates from the substrate, freeze-thaw damage as water infiltrates and expands, and chemical attack from acids, oils, or process fluids. Each repair cycle costs labor and downtime, and the substrate continues to degrade.
Belzona epoxy systems address these failure modes directly. They bond mechanically and chemically to properly prepared concrete, flex with thermal movement, resist chemical attack, and create an impermeable surface that prevents water infiltration.
PERMANENT REPAIR VS TEMPORARY PATCH
Why concrete fails — and why bagged goods make it worse
Why concrete fails
Under compressive load, concrete is one of the best building materials around. But moisture is its weakness — the same moisture required for curing eventually causes failure.
- Freeze-thawMoisture expands when frozen, breaking concrete from within
- CarbonationCO2 and moisture cause concrete to break down over time
- AbrasionTraffic and equipment wear surfaces, allowing moisture in
- Chemical attackpH changes disrupt binders, reducing mechanical strength
- ImpactConcentrated force fractures concrete or damages it structurally
Why cementitious repairs fail
Bagged goods are essentially putting new concrete over damaged concrete — same material, same vulnerabilities. When it fails, you have a larger damaged area and weaker substrate.
- Same material exposed to same conditions
- Mechanical bond only — no chemical adhesion
- Permeable — moisture infiltration continues
- Larger failure area when it breaks down
What's to stop the same damage from happening again?
Why Belzona epoxy works
- Chemical bond to substrate — not just mechanical adhesion
- Impermeable surface — no water infiltration for freeze-thaw
- Chemical resistance — matched to your exposure
- Flexible formulations — accommodate thermal movement
- Fast cure options — return to service in hours, not days
The result
A properly applied Belzona repair becomes the strongest point in the floor — not the weakest.
100% solids epoxy with proprietary blend, engineered for the conditions concrete faces in industrial environments: chemical exposure, thermal cycling, mechanical abuse, and moisture infiltration.
Concrete Repair Products
Different damage types and service conditions require different products. Each Belzona concrete repair system is formulated for specific applications.
Magma-Quartz
Heavy-duty epoxy repair composite for rebuilding damaged concrete. Excellent compressive strength and abrasion resistance.
Best for: Loading docks, heavy traffic areas, impact damage
Profile: Trowel-applied, aggregate-filled
Magma-Build
Two-component epoxy repair composite for rebuilding vertical and overhead concrete surfaces without slumping.
Best for: Walls, columns, overhead repairs, vertical surfaces
Profile: Non-sag paste, hand-applied
Magma-Screed
Self-leveling epoxy screed for resurfacing damaged floors. Creates smooth, impermeable surface over large areas.
Best for: Floor resurfacing, containment areas, process floors
Profile: Self-leveling, pourable
Magma-Crete
Fast-curing repair material for rapid return to service. Ideal for emergency repairs and tight turnaround windows.
Best for: Emergency repairs, fast turnaround, cold weather
Profile: Fast-cure, traffic-ready in hours
AHR Magma-Quartz
Acid and chemical resistant version of Magma-Quartz for environments with aggressive chemical exposure.
Best for: Chemical plants, battery rooms, acid containment
Profile: Chemical resistant, trowel-applied
Magma CR1
High-build epoxy coating for protecting concrete from chemical attack. Also used for lining containment areas.
Best for: Secondary containment, sumps, chemical protection
Profile: Brush/roller applied, high-build coating
Not sure which product? Damage type, chemical exposure, and turnaround time determine the right system. Contact us with photos and details and we will recommend a solution.
Common Applications
Loading Docks
Rebuild impact damage and protect edges from forklift and truck traffic
Secondary Containment
Repair and line containment areas to meet environmental regulations
Processing Areas
Chemical-resistant flooring for food, beverage, and chemical processing
Sumps and Trenches
Waterproof and chemical-resistant linings for drainage systems
Warehouse Floors
Repair joint damage, spalls, and wear areas in high-traffic facilities
Tank Foundations
Repair ring walls and foundations damaged by chemical exposure
Case Study
Warehouse Floor Joint Repair — Pacific Northwest Manufacturer

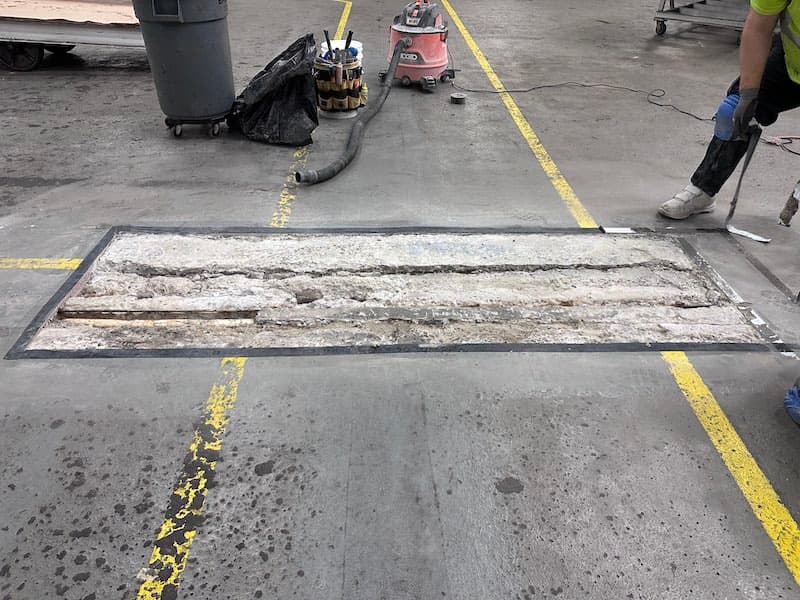

A local manufacturer was dealing with rapidly deteriorating warehouse floor joints. Heavy steel-wheeled carts loaded with product were hammering the same joints day after day, breaking down the concrete and creating dangerous trip hazards across the floor. The damage had progressed to the point where carts were hitting the broken joints hard enough to knock products off and send them toward the feet of workers on the floor.

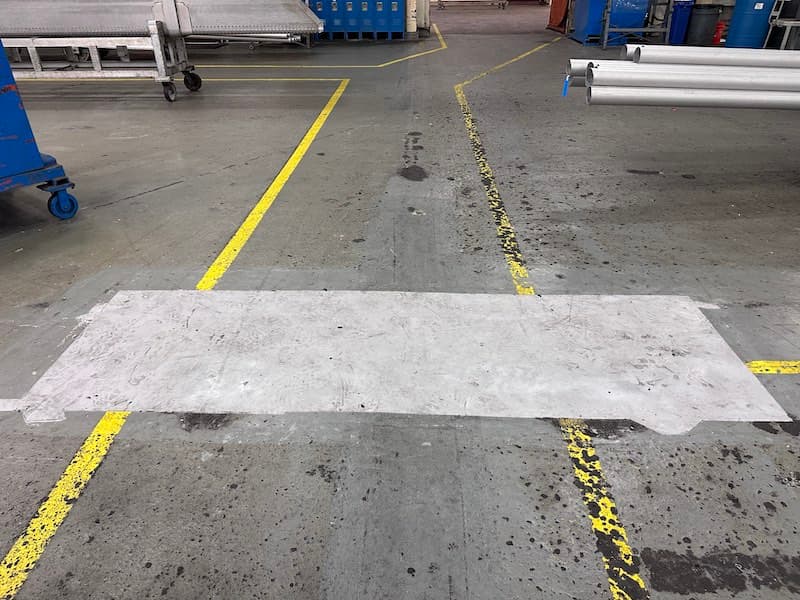

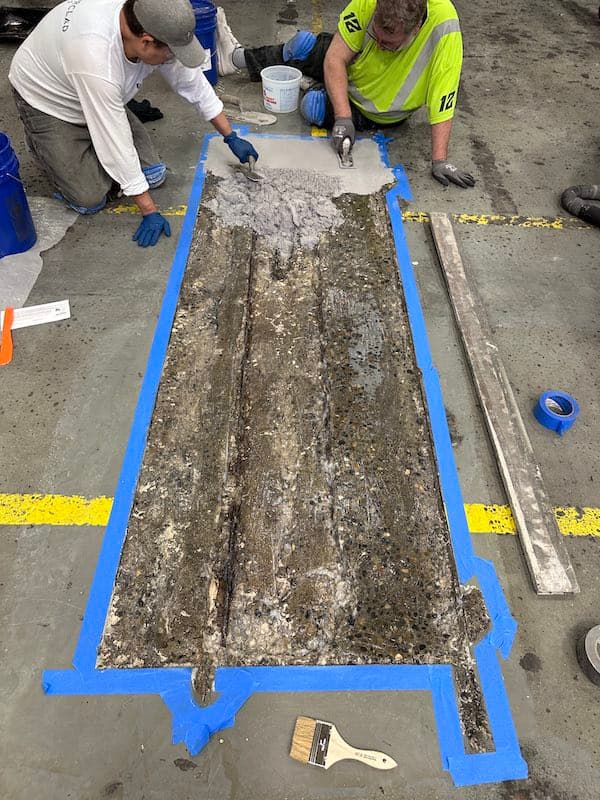

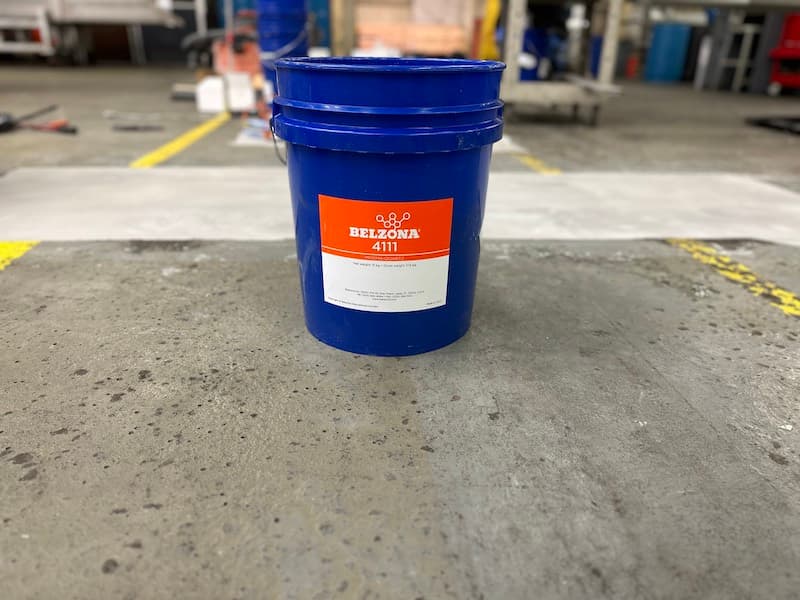

The surfaces were prepared and conditioned with Belzona 4911, then Belzona 4111 (Magma-Quartz) was troweled into the damaged joints on a Friday afternoon. The epoxy cured over the weekend, and the floor was back under full steel-wheel traffic by 7 AM Monday morning — no extended shutdown, no production loss, and a repair that will hold up for years under the same punishing conditions that destroyed the original concrete.
Industries We Serve
Belzona concrete repair systems are used across all industries where concrete is exposed to chemical attack, mechanical abuse, or environmental damage.
Frequently Asked Questions
How long do Belzona concrete repairs last?
Belzona repairs routinely last 10-20 years when properly applied, compared to 1-3 years for cementitious patches. The epoxy system bonds chemically, resists the original damage mechanism, and does not suffer from bond line failure.
Can you repair concrete in cold weather?
Yes. Belzona 4154 (Magma-Crete) is formulated for cold weather application and cures at temperatures as low as 5°C (41°F). This is critical for Pacific Northwest winter repairs.
How quickly can we return to service?
Fast-cure products like Belzona 4154 allow foot traffic in 3-4 hours and forklift traffic in 24 hours. Standard products are fully cured in 24-48 hours depending on temperature.
Is Belzona food-safe for processing areas?
Yes. Several Belzona concrete repair and coating products are approved for incidental food contact and are used in food and beverage processing facilities throughout the Pacific Northwest.
Why do cementitious repairs fail so quickly?
Bagged goods rely on mechanical adhesion only and are permeable to moisture. The same freeze-thaw, chemical attack, and bond line failures that damaged the original concrete will damage the patch — often within 1-3 years.
What surface preparation is required?
Concrete must be clean, dry, and mechanically sound. Typically this means removing loose material, grinding or scarifying the surface to expose fresh concrete, and degreasing if oil contamination is present.
Can Belzona be used for secondary containment?
Yes. Belzona 4301 (Magma CR1) and other systems are specifically designed for containment areas and meet EPA secondary containment requirements when properly applied.
Do you provide training for application?
Yes. We provide hands-on training for your maintenance team and can assist with the first application. Proper technique ensures the repair performs to specification.
Need Permanent Concrete Repair?
Stop the cycle of temporary patches. Describe your damage and exposure conditions and we will recommend a Belzona system that solves the problem permanently. Product training and technical support throughout Washington, Oregon, Alaska, and Northern Idaho.
