Industry: Food and Beverage
Solution: SuperWrap II
Substrate:Carbon Steel
Products:Belzona 1511Belzona 1983Superwrap Carbon Fiber
Location: Richland, WA
Date: June 2022
Problem:
Heat Exchanger had failed, hot water was leaking from the flange. Capitol budget had this unit costing the plant over $500,000 to replace, and 6 months lead time to get. The heat exchanger is still in service 6 years after the project was completed saving the plant from shutting down to replace the unit, and over $1,000,000 in lost production cost.
Solution:
Belzona Technology Northwest recommended 1511 to fill the flange with a HT Paste Grade epoxy. Then we wrapped the flange with Superwrap utilizing the High Temperature 1983 Resin.
Project Photos

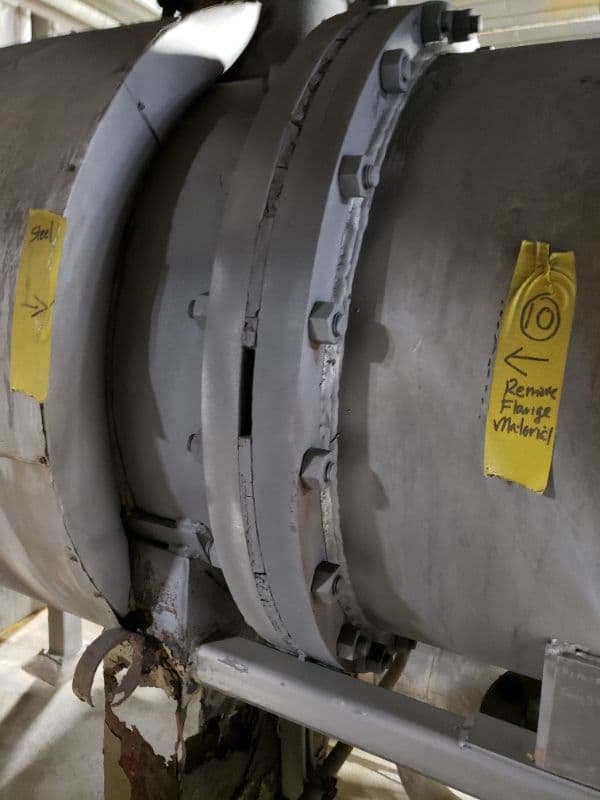

Grit Blasted Flange

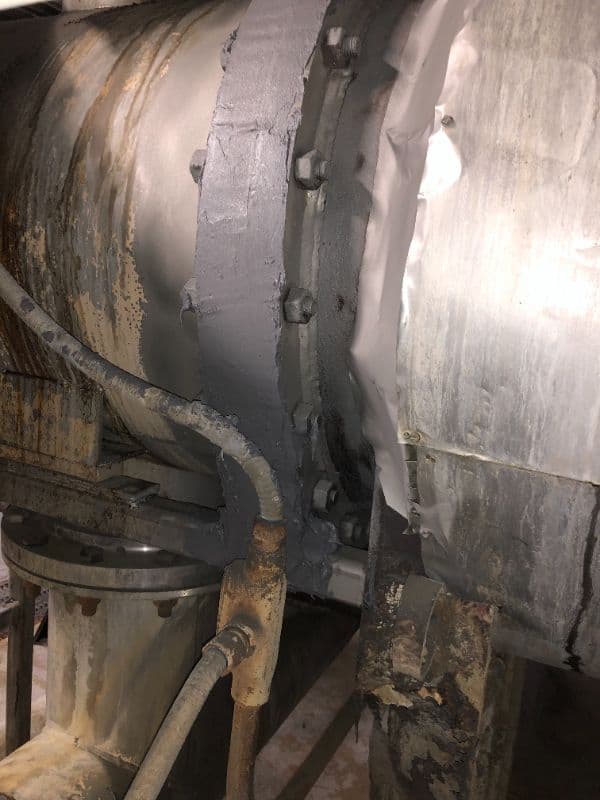

Belzona 1511 Paste Grade

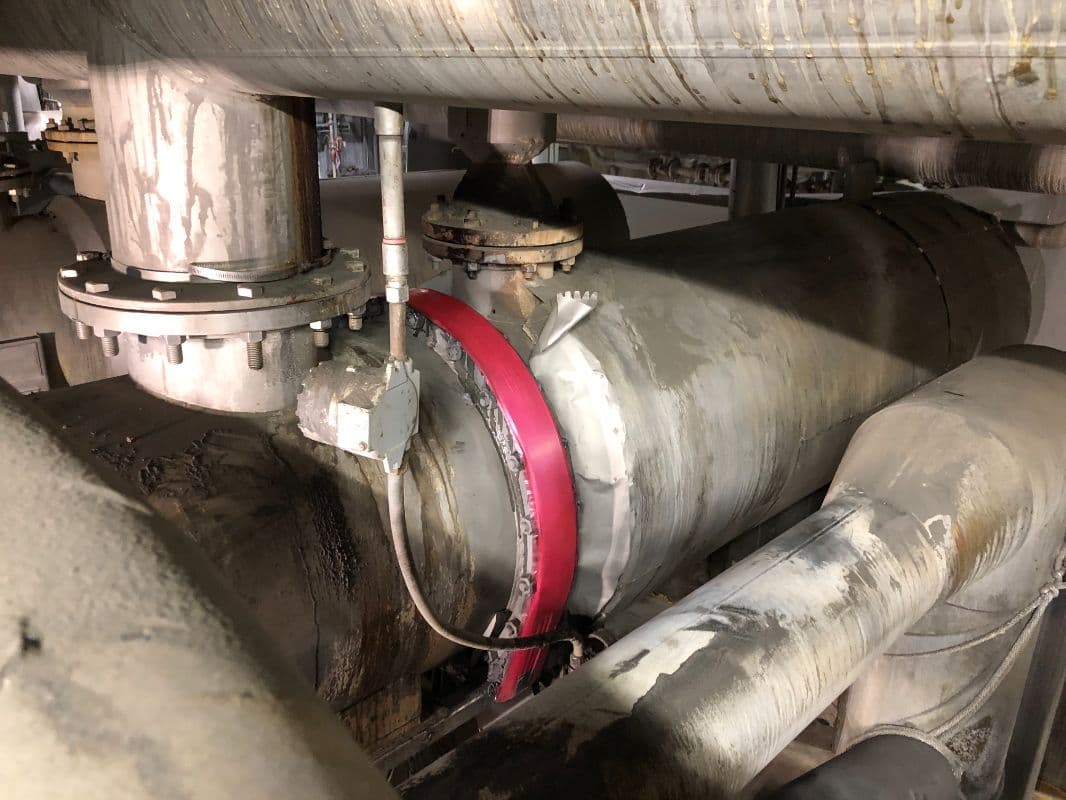

Superwrap 1983 with Consolidation Film

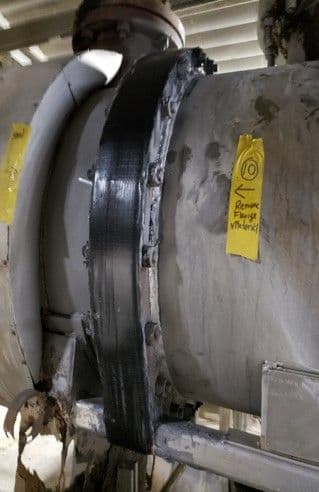

Completed Repair
